Lafomed Compact Line LFSS12AD autoclave with printer 12 L class B medical

Lafomed Compact Line LFSS12AD 12 L medical class B autoclave with printer

The Lafomed Compact Line LFSS12AD is a 12 L class B medical sterilizer with an LCD panel positioned on top of the housing, a thermal printer, and a USB port. 10 programs with a Polish interface and spacious 2.5 L water tanks make it easier to work with a large number of cycles.

Key features

• medical class B - sterilization of packaged and unpackaged, solid, porous, and hollow instruments
• 12 L chamber made of 304 stainless steel
• 10 automatic programs and a user program
• shortest sterilization cycle with drying in 7 minutes
• thermal printer and USB port - paper and digital documentation
• LCD panel on top of the housing, Polish-language interface
• 2.5 L water tanks with front drainage
• Double-Lock system and self-diagnostics

10 programs and a Polish interface

The LCD display guides you through 10 automatic programs - 7 sterilization programs (including a prion program), 2 test programs (vacuum and Bowie & Dick), and an autoclave cleaning program. In addition, the user program allows you to save your own operating parameters. The interface is in Polish, while the preheating and heat-maintenance functions shorten subsequent cycles - the shortest sterilization program with drying takes 7 minutes.

Pressures and total cycle times according to the manufacturer:

Class B sterilization

Class B allows single- and multilayer packaged instruments as well as unpackaged items to be sterilized, including solid, porous, and hollow items. Vacuum and Bowie & Dick tests allow you to regularly verify that the device is operating correctly.

Printer and USB port

The built-in thermal printer prints a report for every cycle without using ink, while the USB port additionally allows results to be saved to a data storage device. Sterilization documentation can therefore be maintained in both paper and digital form.

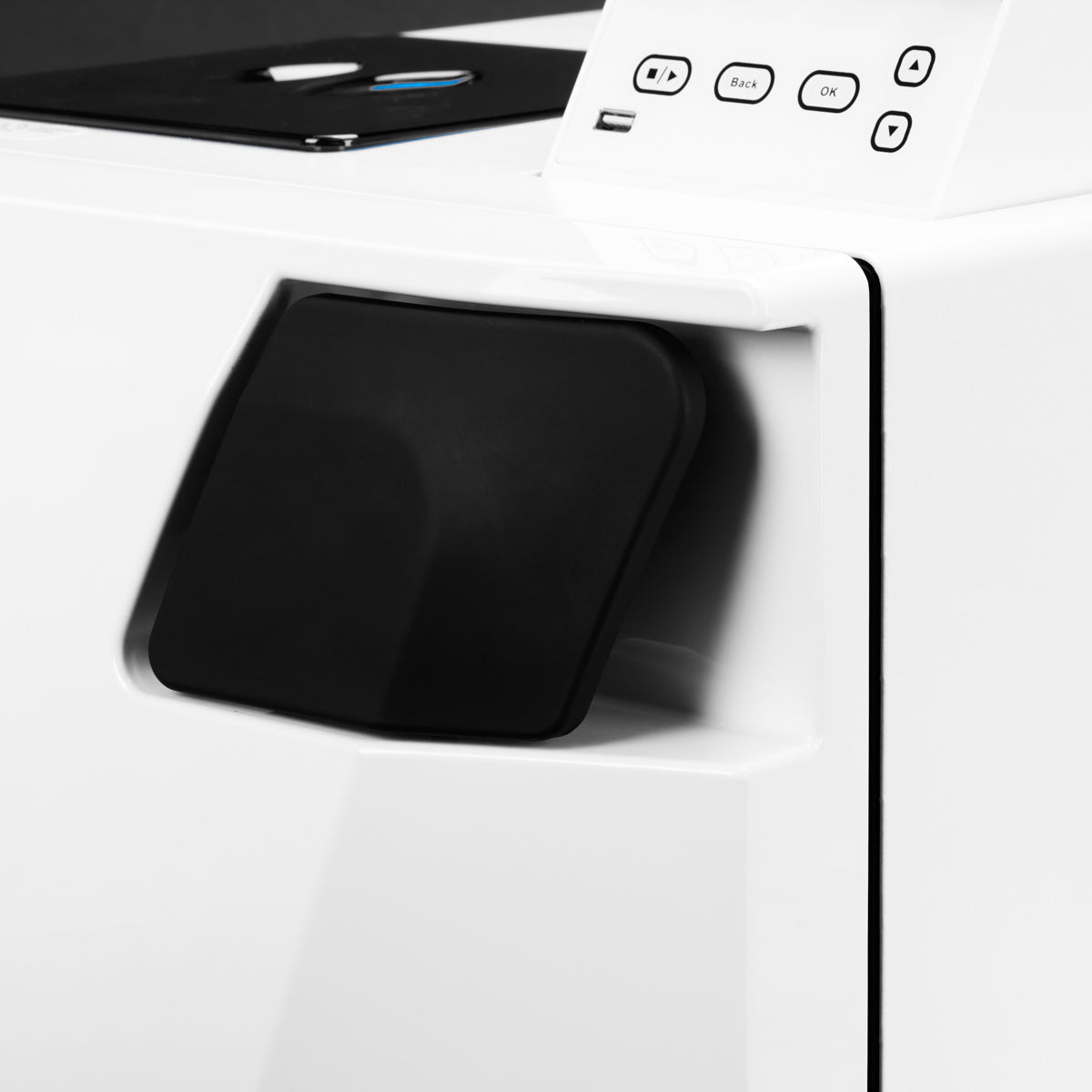

Double-Lock and self-diagnostics

The door is secured by the Double-Lock dual locking system, which prevents the chamber from being opened under pressure. The self-diagnostic system displays messages about irregularities before they lead to device damage.

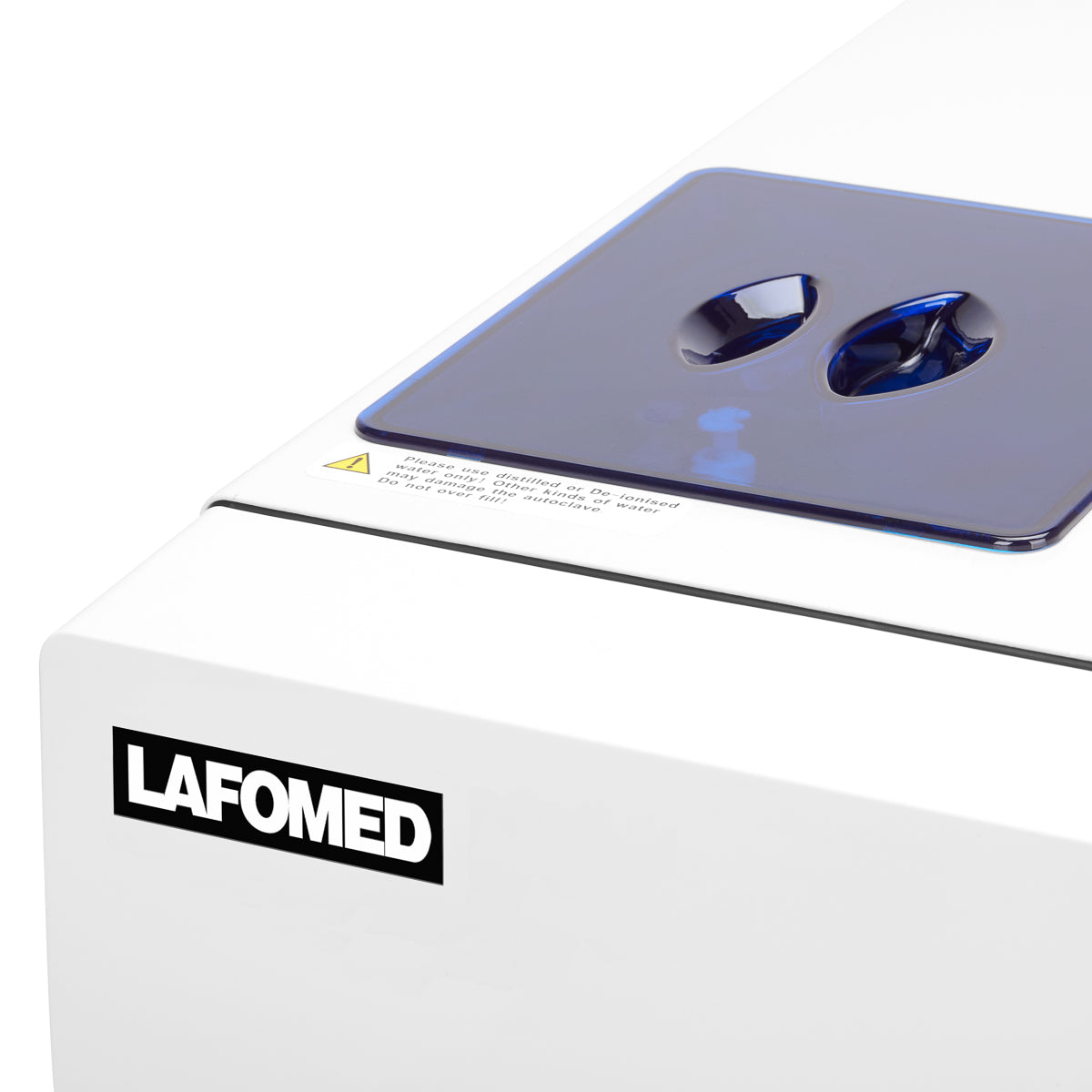

Spacious 2.5 L tanks

The two built-in tanks - for distilled and used water - each have a capacity of 2.5 L, so they require less frequent filling and emptying. The drain is located at the front of the device.

Lafomed service in every province

Lafomed operates a nationwide network of authorized service centers - in every province, you can order an annual inspection or repair, including on-site service at the customer's premises. A technical passport for the device is included with the set.

Who is it for?

For dental offices, clinics, and high-volume beauty salons that perform many cycles per day and need a long warranty and digital archiving.

Other versions of this device

This product family also includes LFSS08AD 8 L, LFSS18AD 18 L, and LFSS23AD 23 L.

FAQ

How does class B differ from simpler autoclaves?
Class B allows all types of loads to be sterilized - packaged and unpackaged, solid, porous, and hollow instruments. Simpler classes are limited to solid and unpackaged instruments.

How can sterilization results be archived?
Each cycle is printed by the built-in thermal printer, and the results can be saved to a data storage device via the USB port and stored digitally.

Is Lafomed service available in Poland?
Yes - authorized service centers operate in every province and perform annual inspections and repairs, including on-site service at the customer's premises.

Technical data

• Type: class B medical autoclave
• Model: LFSS12AD
• Chamber capacity: 12 L
• Programs: 10 automatic programs (7 sterilization, 2 test, cleaning) and a user program
• Sterilization time control: 4-60 min
• Drying time: 1-25 min
• Vacuum cycles: 1-10
• Display: LCD on top of the housing, Polish-language interface
• Printer: built-in thermal printer; USB port for saving cycles
• Water tanks: 2 x 2.5 L (clean and used)
• Maximum operating temperature: 137°C
• Maximum operating pressure: 0.21-0.23 MPa
• Design pressure: -0.1 / 0.27 MPa
• Power supply: 230 V, 50 Hz
• Power: 2.4 kW
• Chamber material: 304 stainless steel
• Chamber dimensions: ⌀ 20 cm
• External dimensions: 65 x 52 x 41.5 cm
• Weight: 51 kg
• Bacterial filter: replace every 150 cycles
• Certificates and standards: CE 1023, ISO 13485, BS EN 13060:2014+A1:2018
• Included: basket with trays, drain hose, power cord, technical passport
• Warranty: 36 months (independent of the number of cycles, with no mandatory extension)
